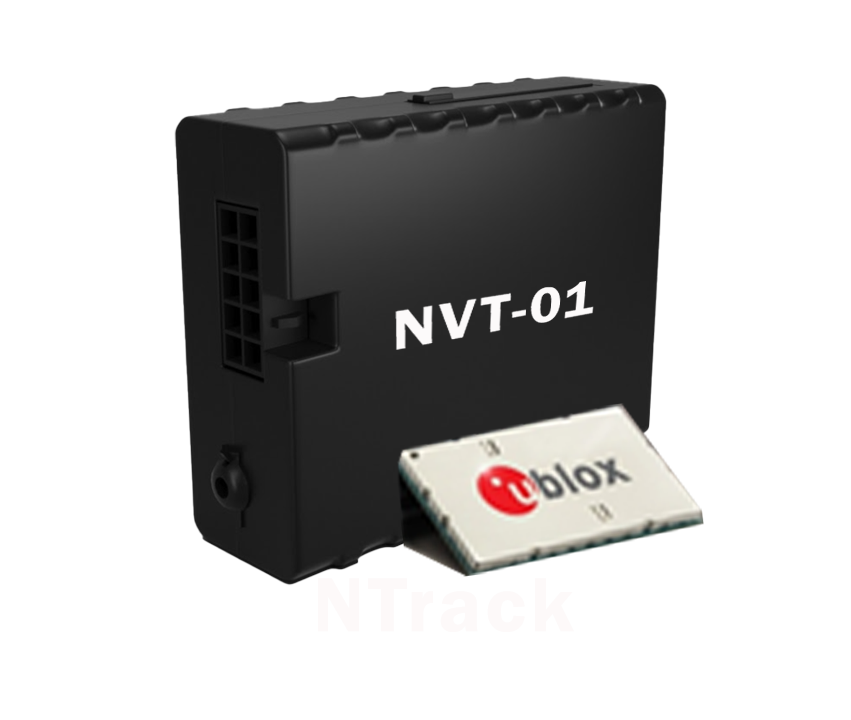

NTrack X

Description

Input Voltage(Main DC Source):
– Wide Input voltage range from 12 volts to 24 volts DC
– High efficiency switch mode DC regulated for sub-system
Operation.
– Rechargeable lithium polymer battery. – 3.7 Volt 600mA, Backup
time up to 7 hours.

Input Current:
– RMS current of up to 150mA* inactive state (Full GNSS / GPRS)
functionality and internal Li-Ion battery in charging mode.
– Normal Sleep current below 10mA on average
– Auto switching between sleep mode and active mode
based on vehicle state.

Protection Subsystems:
– Surge and over voltage protection due to automotive load dump.
– Suitable protection implemented on the sensor integration sub- system for operation over
a wide range of input voltages.
– Reverse polarityprotection.
– Watchdog Protection.
– Battery under and over voltage protection

GSM SPECIFICATIONS

Radio Bands( Quad-band ):
Refers to a mobile phone that supports the four major GSM frequency bands,
making it compatible with all the major GSM networks in the world.
The Quad-band bands are mainly used in the US,while the ones are available in most
other countries worldwide.
MS Class:
3.5mm headphone jack | 3G | 4G | 5G | 802.11
Multi-Slot Capability:
Quad-band 850/900/1800/1900MHz
LPC1765FBD100(MCU) : 32-bit ARM Cortex-M3 microcontroller;
RX RS232 Transceivers: 3V to 5.5V, 2 TX 2 RX RS232
GSM Antenna:
Wireless Internal GSM GPRS Antenna , High Performance UFL Connector Chip Antennas

Multi-media type:
As with text-based media, audio-based media can also be separated into synchronous
communication.

GPS SPECIFICATION

Radio Bands:
GPS L11575.42 2MHZ
Protocol basis:
This communication means of this protocol should be in accord with the relative stipulation, by
using TCP/UDP, the platform as the server side, and the terminal as the customer side. When the data
communication link is abnormal, the terminal will use an SMS message to communicate.
Field not used. Only Used for the GPS Recorder
Product Optional parameter that is not used in the
A5 & A6.
GPS Antenna:
Offer GPS Antenna, GSM Antenna WiMAX Antenna,
RFID
Antenna etc.
Manufacturer in Taiwan. ISO 9001 Certificated.
OEM, ODM, & OBM accepted.
Types: VHF/UHF antennas, Base Station Antennas, Mount &
Accessories, Connectors, Citizen Band antennas, 4G LTE,
Wimax.
RANGE:
This protocol formulates the communication and data format between the terminal (device) and
monitoring center (platform), including protocol basis, communication connection, message
handling, protocol classification and explanation, and data format.
This protocol is applied for the communication between the terminal device and the platform.

Standard ability:
GB/T 2260 CODE of Administration division of PRC
GB/T 19056 Digital Tachograph
JT/T 415-2006 e-government affairs catalog and code rules JT/T 794 Terminal
requirements and technical request
